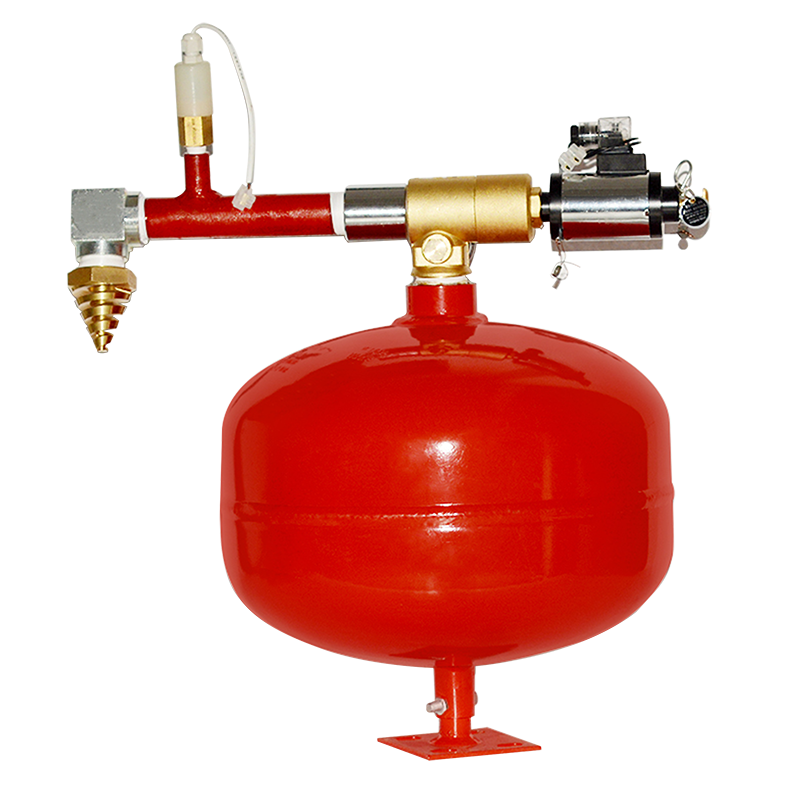

FM200 Constant-temperature suspended heptafluoropropane fire extinguishing device

  It is mainly composed of a fire extinguishing agent storage device and a temperature-sensing release component.
  Among them, the parameters of the storage device are as follows:

Device model	The amount of fire extinguishing agent filled(KG)	Tank volume(L)	Storage pressure(Mpa)	Injection time(S)	Startup mode
XQQW8/1.6	8	8	1.6	<10	Temperature sensing
XQQW10/1.6	10	10	1.6	<10
XQQW20/1.6	20	20	1.6	<10
XQQW30/1.6	30	30	1.6	<10

The parameters of the temperature-sensing release component are as follows:

Device model	Sensing temperature: ℃	Tank volume(L)	Storage pressure(Mpa)	Connection thread
XQQW8/1.6	68	8	1.6	M30×2
XQQW10/1.6	68	10	1.6	M30×2
XQQW20/1.6	68	20	1.6	M30×2
XQQW30/1.6	68	30	1.6	M30×2

After-sales commitment:
1 For the products sold by our company, the warranty period shall be based on the date of signing the contract between both parties. If any problem occurs with the products sold by our company during the warranty period, please report the operation status of each equipment component to our company in writing or by phone.
2 The entire maintenance process of the project will be comprehensively maintained and managed by our company's construction team, and we will never subcontract it to any external parties.
3 During the maintenance period, if any technical problems occur, our company will dispatch technicians to the site for comprehensive debugging and report in writing whether the operation of each piece of equipment and component is normal, and obtain the approval of both Party A and Party B.
4 Our company strictly follows the requirements of the ISO9001 international quality system certification procedures for the entire fire protection maintenance work for maintenance and management.
5 If the products installed by our company cannot be used normally after inspection and repair by our technicians, our company will replace them free of charge.
6 We will strictly abide by all the rules and regulations of your organization, complete the product inspection and maintenance on time and to a high standard as required by your organization, and restore the normal operation of the fire protection equipment as soon as possible. And ensure that it does not impede the normal operation of your organization and the protection of your mechanical equipment.

  We have the confidence, conditions and ability to fully cooperate with your organization to complete the maintenance and repair tasks of the fire protection project. Meanwhile, we sincerely invite your organization to visit our company for guidance at any time and hope to receive your valuable opinions. To further advance our work, we will, as always, adhere to the principle of "completing one project, establishing one brand, and making a group of friends", and actively cooperate with your organization to ensure the safety, stability and reliability of fire protection maintenance work.
